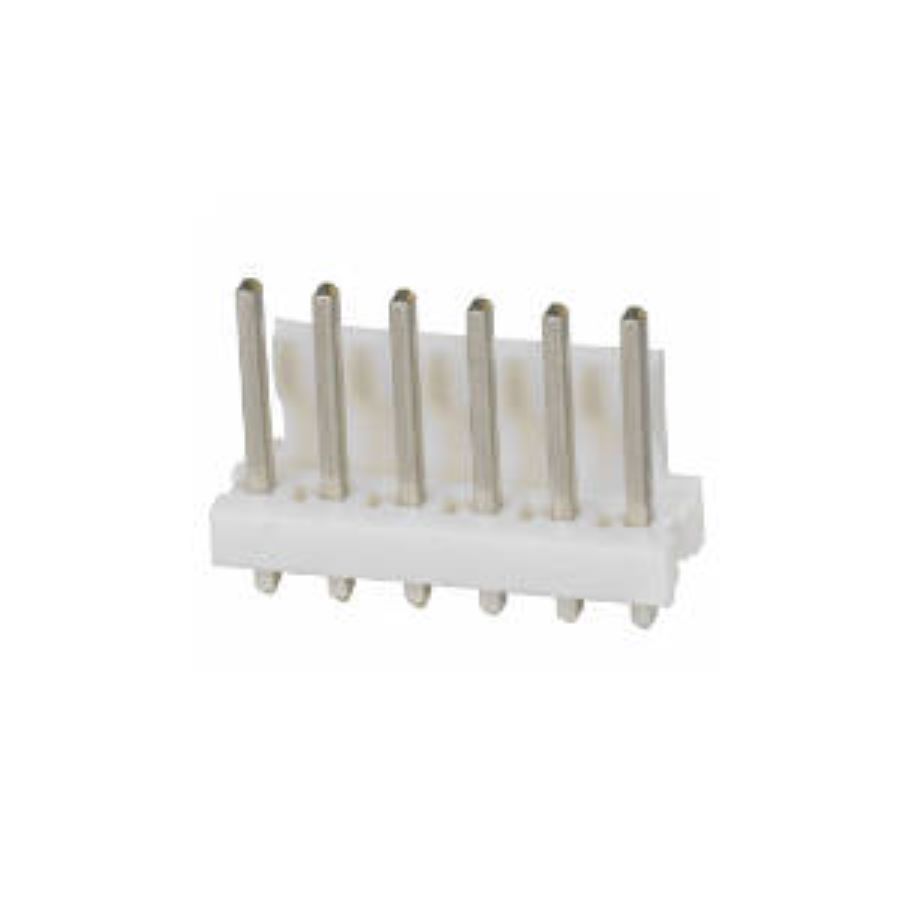

640445-6
Manufacturer:
TE Connectivity
Mfr.Part #:
640445-6
Datasheet:
Description:
IC and Component Sockets Through Hole Header Number of Positions:6 Number of Rows:1 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bag |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 3.96 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Active |
| Color | White |
| Gender | Male |
| Number of Contacts | 6 |
| Mounting Style | Through Hole, Vertical |
| lead free status | Lead Free |
| operating temperature | -55.0 °C to 105 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| size width | 7.75 mm |
| size length | 23.8 mm |
| size height | 10.8 mm |
| voltage rating ac | 250 V |
| elv compliant | Compliant |
| Housing Color | White |
| pin pitch | 3.96 mm |
| shrouded | No |
| Contact Finish - Mating | Tin |
Stock: 1236
Distributors
pcbx
pcbxUnit Price$0.33994
Ext.Price$0.33994
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33994 | $0.33994 |
| 10 | $0.30620 | $3.06200 |
| 50 | $0.27581 | $13.79050 |
| 100 | $0.24887 | $24.88700 |
| 500 | $0.22456 | $112.28000 |
| 1000 | $0.20263 | $202.63000 |
| 3000 | $0.19089 | $572.67000 |
| 5000 | $0.17983 | $899.15000 |
